The Worldline Payment Interface (WPI) is an Android intent-based interface that enables easy and fast integration with payment apps. It is designed to allow additional business applications to execute payments on any Worldline offered SmartPOS device. A SmartPOS device is a payment device that runs Android And also smartphones using Tap On Mobile.

All Worldline Payment Solutions support WPI, which means that business applications that use this interface can run everywhere without any change of code. This makes it easy for developers to build payment apps that are compatible with a wide range of payment devices and payment protocols.

The WPI interface is built on top of the Android Intent mechanism, which allows different parts of an app to communicate with each other in a structured way. By using intents to trigger payment-related actions, the WPI interface simplifies the payment integration process and makes it easier for developers to build business applications on top of Payment Solutions.

What you'll learn

• Retry Logic: Requests for WPI information are retried up to 5 times with increasing delay if they fail.
• Service Disconnection Handling: If the service disconnects during a retry, the retry loop exits and the UI shows an error.
• UI Feedback: The UI displays the current attempt and error messages, making the retry process transparent.

• Basic knowledge of Android development and Kotlin programming language
• Payment application running on your device
• SmartPOS Settings application installed on your device

Get the code

Click the following link to download all the code for this codelab:

Download Zip

Check out the sample app

For this codelab we will use Android studio Narwhal Feature Drop, SDK 36 and Gradle 8.14.3 This codelab repository contains multiple branches to help you follow along and understand the evolution of the code:

• end: This branch contains the finishing code from the previous codelab. Use this as your starting point for implementing the retry mechanism in this codelab. Previous codelab here : wpi-payment-information-codelab
• retry-wpi-info: This branch contains the final solution for this codelab, including the robust retry mechanism for fetching WPI information. Use this branch to compare your implementation or to see the complete solution.

Tip: We recommend that you start with the code in the end branch and follow the codelab step-by-step at your own pace. You can always refer to the retry-wpi-info branch if you get stuck or want to see the final implementation.

Getting familiar with the code and running the sample app

Take a moment to explore the project structure and run the app.

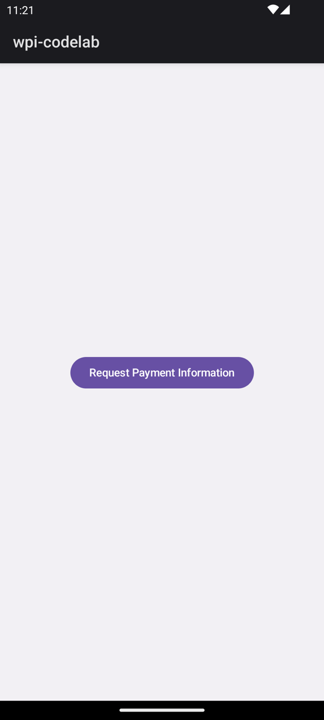

When you run the app from the end branch , you'll see that this is a very simple application with only a button to request the payment information. This project uses Jetpack Compose for the UI and Kotlin Serialization for JSON serialization and deserialization.

From the previous codelab we saw how to implement the information request. As a reminder, WPI provides a set of intents that developers can use to build apps that work with the interface. The following table lists each intent, along with its purpose:

As you can see the information request is a background action, this means that the payment solution will not show any UI when this intent is called. This is useful for requests that do not require user interaction, such as fetching configuration data. For this type of request we use Android Messenger service to get the response from the payment solution.

Extras

An extra in Android intents is a way to pass additional data or parameters to another component in order to provide more context or information for the requested action. In WPI we have extras for request and response. The request extras needs to be provided by the Business Application that is using the interface and the response extra is provided by the Payment Solution.

Request:

Response:

• Information

Data Dictionary

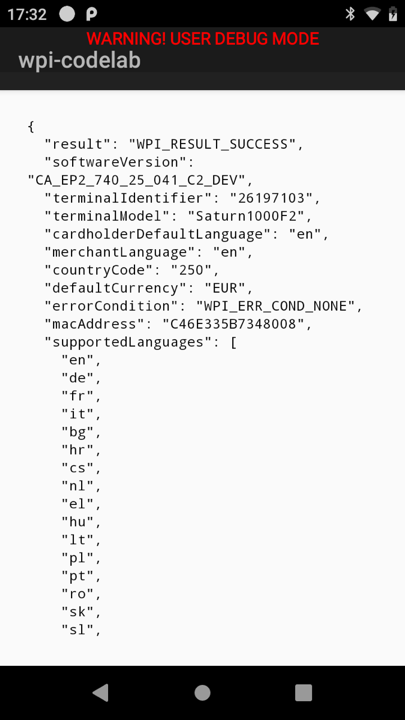

Response Data: Payment Solution Information

To simulate a real world scenario, you can set the sample app as the default application that will start at terminal startup. To do this, you need to set the application as the default app in the SmartPOS settings application.

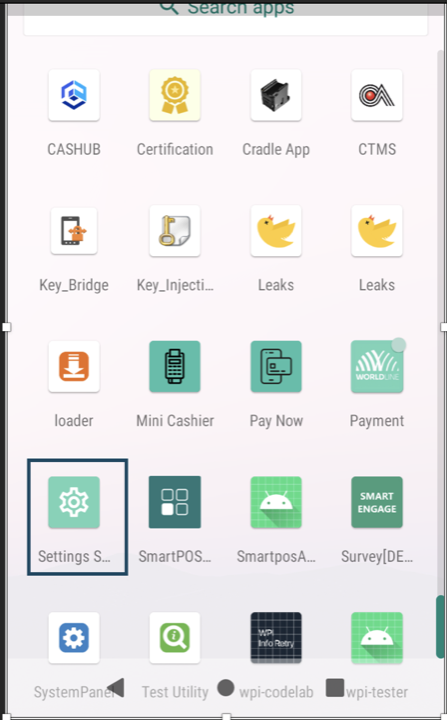

1. Go to Launcher and open settings application

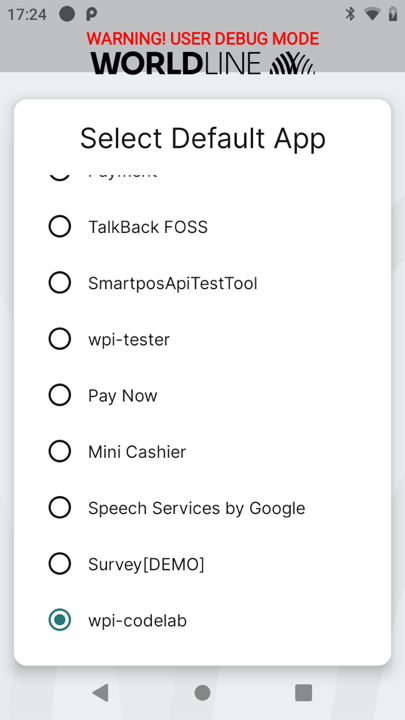

2. Select wpi-codelab as Default Application

3. To verify that everything is working correctly, restart the terminal. After the restart, the sample app should start automatically.

The PaymentInfoScreen needs to change to react to different UI states such as loading, success, and error. To achieve this, we will define a sealed class PaymentInfoUiState that represents these states.

sealed class PaymentInfoUiState {
    object Idle : PaymentInfoUiState()
    data class Loading(val attempt: Int) : PaymentInfoUiState()
    data class Success(val json: String, val attempt: Int) : PaymentInfoUiState()
    data class Error(val message: String, val attempt: Int) : PaymentInfoUiState()
}

We will change the compose code to react to these states accordingly. The signature of the PaymentInfoScreen composable function will be updated to accept the uiState and a retry callback. The purpose of the application changes as we will automatically request the payment information when the app starts and retry if it fails.

@Composable
fun PaymentInfoScreen(
    uiState: PaymentInfoUiState,
    onRetry: () -> Unit
) {
  //... existing code ...
}

Whe change the Colum to show different content based on the uiState.

Column(
        modifier = Modifier
            .fillMaxSize()
            .padding(24.dp),
        verticalArrangement = Arrangement.Center,
        horizontalAlignment = Alignment.CenterHorizontally
    ) {
        when (uiState) {
            is PaymentInfoUiState.Loading -> {
                CircularProgressIndicator()
                Spacer(modifier = Modifier.height(16.dp))

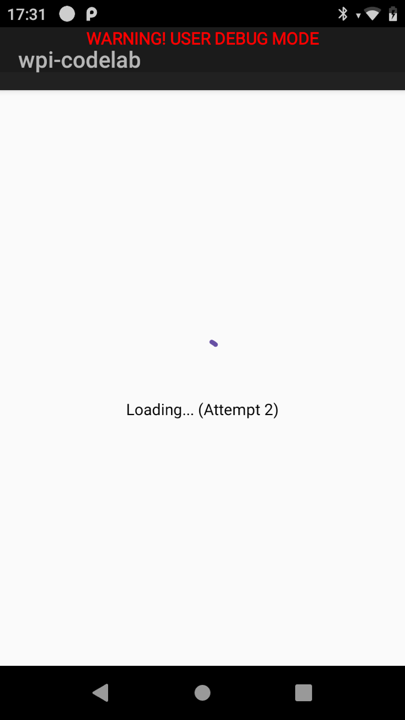

                Text("Loading... (Attempt ${uiState.attempt})")
            }
            is PaymentInfoUiState.Error -> {
                Text(
                    text = "Error: ${uiState.message}",
                    color = Color.Red
                )
                Spacer(modifier = Modifier.height(8.dp))
                Button(onClick = onRetry) {
                    Text("Retry")
                }
                Spacer(modifier = Modifier.height(8.dp))
                Text("Attempt: ${uiState.attempt}")
            }
            is PaymentInfoUiState.Success -> {
                Box(
                    modifier = Modifier
                        .weight(1f)
                        .fillMaxWidth()
                        .verticalScroll(rememberScrollState())
                ) {
                    Text(
                        text = prettyPrintJson(uiState.json),
                        style = MaterialTheme.typography.bodySmall,
                        fontFamily = FontFamily.Monospace
                    )
                }
            }
            PaymentInfoUiState.Idle -> {}
        }
    }

The PaymentInfoViewModel is responsible for managing the state of the payment information request process. It uses Jetpack Compose's mutableStateOf to hold the current UI state, which can be one of the states defined in the PaymentInfoUiState. It also tracks the current attempt number for retries and provides a method to retry fetching the payment information.

class PaymentInfoViewModel : ViewModel() {
  private val _uiState = MutableStateFlow<PaymentInfoUiState>(PaymentInfoUiState.Idle)
  val uiState: StateFlow<PaymentInfoUiState> = _uiState
  private var attempt = 1

  /**
   * Initializes the request process, setting the attempt counter to 1 and updating the UI state to Loading.
   */
  fun startPaymentInfoRequest() {
    attempt = 1
    _uiState.value = PaymentInfoUiState.Loading(attempt)
  }

  /**
   * Handles the result of the payment information request.
   * If successful, updates the UI state to Success.
   * If it fails and the maximum number of attempts (5) has not been reached, updates the UI state to Loading for another attempt.
   * If all attempts fail, sets the UI state to Error.
   */
  fun onPaymentInfoResult(result: Result<String>) {
    if (result.isSuccess) {
      _uiState.value = PaymentInfoUiState.Success(result.getOrNull() ?: "", attempt)
    } else {
      if (attempt >= 5) {
        _uiState.value = PaymentInfoUiState.Error("All attempts failed", attempt)
        attempt = 0
      } else {
        _uiState.value = PaymentInfoUiState.Loading(attempt)
      }
    }
    attempt++
  }

  /**
   * Allows the user to manually retry fetching the payment information by updating the UI state to Loading.
   */
  fun retry() {
    _uiState.value = PaymentInfoUiState.Loading(attempt)
  }

  /**
   * Handles the scenario where the service disconnects during the retry process, updating the UI state to Error and resetting the attempt counter.
   */
  fun onServiceDisconnected() {

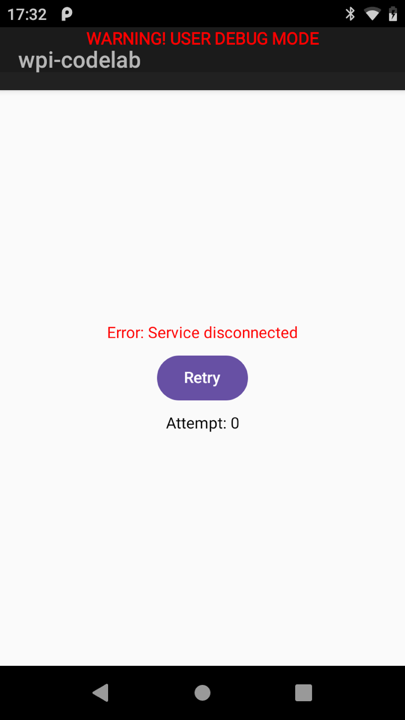

    _uiState.value = PaymentInfoUiState.Error("Service disconnected", attempt)
    attempt = 0
  }
}

The MainActivity will be updated to implement the retry logic for fetching the payment information.

1. In a separate file, We need to create PaymentInformationResponse data class to parse the response and check if the result is SUCCESS or not. The PaymentInformationResponse will only contain the fields we need for this demo. We use a custom serializer for the Result enum to handle the prefix in the enum values.

@Serializable
data class PaymentInformationResponse(
   val errorCondition: String,
    val result: Result
)

@Serializable(with = ResultSerializer::class)
enum class Result( val id: String) {
  SUCCESS("WPI_RESULT_SUCCESS"),
  PARTIAL("WPI_RESULT_PARTIAL"),
  FAILURE("WPI_RESULT_FAILURE")
}


@Serializer(forClass = Result::class)
class ResultSerializer : KSerializer<Result> {

  private val prefix = "WPI_RESULT_"

  override val descriptor: SerialDescriptor
    get() = PrimitiveSerialDescriptor("Result", PrimitiveKind.STRING)

  override fun deserialize(decoder: Decoder): Result {
    val name = decoder.decodeString().removePrefix(prefix)
    return Result.valueOf(name)
  }

  override fun serialize(encoder: Encoder, value: Result) {
    encoder.encodeString(value.id)
  }
}

2. Declare a Json instance with ignoreUnknownKeys set to true to handle any extra fields in the response that we are not interested in.

private val json = Json {
        encodeDefaults = true
        ignoreUnknownKeys = true
        explicitNulls = false
    }

3. Change the signature of the requestPaymentInformation method to suspend and return the result of the request, based on this we will implement the retry logic.
4. We need to update the messenger Handler to check if the response from the request is successful or not, because this will also have an impact on the retry logic.
5. For Demo purposes we added a lot of logging to see what is happening during the retry process.

    private suspend fun executePaymentInformation(): Result<String> = suspendCancellableCoroutine { cont ->

  val message = Message.obtain(
    null,
    895349,
    paymentInformationBundle
  )
  val handler = object : Handler(Looper.getMainLooper()) {
    override fun handleMessage(msg: Message) {
      when (msg.what) {
        895349 -> {
          val data = msg.obj as? Bundle
          val response = data?.getString("WPI_RESPONSE")
          if (response != null && response.isNotBlank()) {
            val decodeResult = runCatching {
              json.decodeFromString<PaymentInformationResponse>(response)
            }
            decodeResult.onSuccess { paymentSettingsResponse ->
              if (paymentSettingsResponse.result == WPIResult.SUCCESS) {
                Log.i("PaymentInfo", "Result: ${paymentSettingsResponse.result}")
                cont.resume(Result.success(response))
              } else {
                Log.i("PaymentInfo", "Response not successfull")
                cont.resume(Result.failure(Exception("Result not SUCCESS: ${paymentSettingsResponse.result}. Full response: $response")))
              }
            }.onFailure { e ->
              Log.e("PaymentInfo", "Failed to parse response", e)
              cont.resume(Result.failure(Exception("Failed to parse response", e)))
            }
          } else {
            cont.resume(Result.failure(Exception("Invalid or empty response")))
          }
        }
        else -> cont.resumeWithException(IllegalArgumentException("${msg.what} is an incorrect message identifier."))
      }
    }
  }
  // .. more existing code ...
}

6. We need to modify the messenger send, to see if the service is disconnected, so that we can update the result accordingly in the ViewModel.
7. We highlight the DeadObjectException which illustrates that the service is disconnected.

 private suspend fun executePaymentInformation(): Result<String> = suspendCancellableCoroutine { cont ->

   // ... existing code ...

  val messenger = Messenger(handler)
        message.replyTo = messenger
        if (!bound || mService == null) {
            Log.e("PaymentInfo", "Service not bound or Messenger is null. Cannot send message.")
            cont.resume(Result.failure(Exception("Service not bound or Messenger is null.")))
            return@suspendCancellableCoroutine
        }

        runCatching {
            mService?.send(message)
        }.onFailure { e ->
            when (e) {
                is android.os.DeadObjectException -> Log.e("PaymentInfo", "DeadObjectException: Service is dead.", e)
                else -> Log.e("PaymentInfo", "Exception sending message to service", e)
            }
            cont.resume(Result.failure(e))
        }

}

8. Finally we implement the retryLogic in the MainActivity using a coroutine that will keep trying to fetch the payment information until it succeeds or reaches the maximum number of attempts (5).

private suspend fun <T> retryCall(
        times: Int = 5,
        initialDelay: Long = 2000L,
        factor: Long = 2L,
        block: suspend () -> Result<T>
    ) {
        var currentDelay = initialDelay
        repeat(times) {
            if (!bound) {
                Log.e("PaymentInfo", "Service is not bound during retry. Exiting retry loop.")
                paymentInfoViewModel.onServiceDisconnected()
                return
            }
            Log.i("PaymentInfo", "Retry attempt:  $it")
            block().onSuccess { return }
            Log.i("PaymentInfo", "Current delay:  $currentDelay")
            delay(currentDelay)
            currentDelay *= factor
        }
    }

Use Retry Logic and ViewModel in Activity

• Declare the ViewModel in the Activity and the retryAttempt variable.

private var retryAttempt = 1
private val paymentInfoViewModel: PaymentInfoViewModel by viewModels()

• Define the method to execute the payment information request with retry logic that we implemented earlier.

    private fun executePaymentInformationWithRetry() {
        retryAttempt = 1
        lifecycleScope.launch {
            retryCall {
                val res = executePaymentInformation()
                paymentInfoViewModel.onPaymentInfoResult(res)
                retryAttempt++
                Log.i("PaymentInfo", "Res from infoRequest:  $res")
                res
            }
        }
    }

• We need to modify the onServiceConnected method so that the viewModel starts the attempts and we automatically call the executePaymentInformationWithRetry method. This refactoring achieves this because we bind to the service onStart() of the activity, so when the service is connected we want to start the request process immediately.

 override fun onServiceConnected(className: ComponentName, service: IBinder) {
  mService = Messenger(service)
  bound = true
  paymentInfoViewModel.startPaymentInfoRequest()
  executePaymentInformationWithRetry()
}

• We need to modify onServiceDisconnected to notify the ViewModel when the service disconnects.

  override fun onServiceDisconnected(className: ComponentName) {
  Log.i("PaymentInfo", "Service disconnected")
  bound = false
  paymentInfoViewModel.onServiceDisconnected()
}

• We need to observe the uiState from the ViewModel and pass it to the PaymentInfoScreen composable.

  setContent {
            val uiState by paymentInfoViewModel.uiState.collectAsState()
            PaymentInfoScreen(
                uiState = uiState,
                onRetry = {
                    paymentInfoViewModel.retry()
                    bindInformationService()                }
            )
        }

• onRetry will trigger the retry logic again by calling bindInformationService which will bind to the service and start the request process again.

   private fun bindInformationService() {
        val intent = Intent("com.worldline.payment.action.PROCESS_INFORMATION").apply {
            component = getWpiSupportedServices("com.worldline.payment.action.PROCESS_INFORMATION").first()
            putExtras(paymentInformationBundle)
        }
        bindService(intent, mConnection, Context.BIND_AUTO_CREATE)
    }

• Since this is the same code we trigger onStart we can refactor this code to a separate method and call it from both places.

   override fun onStart() {
        super.onStart()
        bindInformationService()
    }

After completing all the steps, your MainActivity.kt should look like this:

class MainActivity : ComponentActivity() {
    /** Messenger for communicating with the service.  */
    private var mService: Messenger? = null

    /** Flag indicating whether we have called bind on the service.  */
    private var bound: Boolean = false
    private var retryAttempt = 1
    private val paymentInfoViewModel: PaymentInfoViewModel by viewModels()

    private val json = Json {
        encodeDefaults = true
        ignoreUnknownKeys = true
        explicitNulls = false
    }

    /**
     * Class for interacting with the main interface of the service.
     */
    private val mConnection = object : ServiceConnection {
        // Called when the connection with the service is established.
        override fun onServiceConnected(className: ComponentName, service: IBinder) {
            // Because we have bound to an explicit
            // service that is running in our own process, we can
            // cast its IBinder to a concrete class and directly access it.
            mService = Messenger(service)
            bound = true
            paymentInfoViewModel.startPaymentInfoRequest()
            executePaymentInformationWithRetry()
        }

        // Called when the connection with the service disconnects unexpectedly.
        override fun onServiceDisconnected(className: ComponentName) {
            Log.i("PaymentInfo", "Service disconnected")
            bound = false
            paymentInfoViewModel.onServiceDisconnected()
        }
    }

    private val paymentInformationBundle = bundleOf(
        "WPI_SERVICE_TYPE" to "WPI_SVC_PAYMENT_INFORMATION",
        "WPI_VERSION" to "2.1",
        "WPI_SESSION_ID" to UUID.randomUUID().toString()
    )



    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContent {
            val uiState by paymentInfoViewModel.uiState.collectAsState()
            PaymentInfoScreen(
                uiState = uiState,
                onRetry = {
                    paymentInfoViewModel.retry()
                    bindInformationService()                }
            )
        }
    }

    override fun onStart() {
        super.onStart()
        bindInformationService()
    }

    override fun onStop() {
        super.onStop()
        // Unbind from the service.
        if (bound) {
            unbindService(mConnection)
            bound = false
        }
    }

    private fun bindInformationService() {
        val intent = Intent("com.worldline.payment.action.PROCESS_INFORMATION").apply {
            component = getWpiSupportedServices("com.worldline.payment.action.PROCESS_INFORMATION").first()
            putExtras(paymentInformationBundle)
        }
        bindService(intent, mConnection, Context.BIND_AUTO_CREATE)
    }

    @SuppressLint("HandlerLeak", "UnsafeIntentLaunch")
    private suspend fun executePaymentInformation(): Result<String> = suspendCancellableCoroutine { cont ->
        val message = Message.obtain(
            null,
            895349,
            paymentInformationBundle
        )
        val handler = object : Handler(Looper.getMainLooper()) {
            override fun handleMessage(msg: Message) {
                when (msg.what) {
                    895349 -> {
                        val data = msg.obj as? Bundle
                        val response = data?.getString("WPI_RESPONSE")
                        if (response != null && response.isNotBlank()) {
                            val decodeResult = runCatching {
                                json.decodeFromString<PaymentInformationResponse>(response)
                            }
                            decodeResult.onSuccess { paymentSettingsResponse ->
                                if (paymentSettingsResponse.result == WPIResult.SUCCESS) {
                                    Log.i("PaymentInfo", "Result: ${paymentSettingsResponse.result}")
                                    cont.resume(Result.success(response))
                                } else {
                                    Log.i("PaymentInfo", "Response not successfull")
                                    cont.resume(Result.failure(Exception("Result not SUCCESS: ${paymentSettingsResponse.result}. Full response: $response")))
                                }
                            }.onFailure { e ->
                                Log.e("PaymentInfo", "Failed to parse response", e)
                                cont.resume(Result.failure(Exception("Failed to parse response", e)))
                            }
                        } else {
                            cont.resume(Result.failure(Exception("Invalid or empty response")))
                        }
                    }
                    else -> cont.resumeWithException(IllegalArgumentException("${msg.what} is an incorrect message identifier."))
                }
            }
        }
        val messenger = Messenger(handler)
        message.replyTo = messenger
        if (!bound || mService == null) {
            Log.e("PaymentInfo", "Service not bound or Messenger is null. Cannot send message.")
            cont.resume(Result.failure(Exception("Service not bound or Messenger is null.")))
            return@suspendCancellableCoroutine
        }

        runCatching {
            mService?.send(message)
        }.onFailure { e ->
            when (e) {
                is android.os.DeadObjectException -> Log.e("PaymentInfo", "DeadObjectException: Service is dead.", e)
                else -> Log.e("PaymentInfo", "Exception sending message to service", e)
            }
            cont.resume(Result.failure(e))
        }
    }

    private suspend fun <T> retryCall(
        times: Int = 5,
        initialDelay: Long = 2000L,
        factor: Long = 2L,
        block: suspend () -> Result<T>
    ) {
        var currentDelay = initialDelay
        repeat(times) {
            if (!bound) {
                Log.e("PaymentInfo", "Service is not bound during retry. Exiting retry loop.")
                paymentInfoViewModel.onServiceDisconnected()
                return
            }
            Log.i("PaymentInfo", "Retry attempt:  $it")
            block().onSuccess { return }
            Log.i("PaymentInfo", "Current delay:  $currentDelay")
            delay(currentDelay)
            currentDelay *= factor
        }
    }

    private fun executePaymentInformationWithRetry() {
        retryAttempt = 1
        lifecycleScope.launch {
            retryCall {
                val res = executePaymentInformation()
                paymentInfoViewModel.onPaymentInfoResult(res)
                retryAttempt++
                Log.i("PaymentInfo", "Res from infoRequest:  $res")
                res
            }
        }
    }

    private fun Context.getWpiSupportedServices(action: String): List<ComponentName> {
        val intent = Intent(action)
        return packageManager.queryIntentServices(intent, 0)
            .mapNotNull { ComponentName(it.serviceInfo.packageName, it.serviceInfo.name) }
    }
}

And your PaymentInfoViewModel should look like this:

class PaymentInfoViewModel : ViewModel() {
    private val _uiState = MutableStateFlow<PaymentInfoUiState>(PaymentInfoUiState.Idle)
    val uiState: StateFlow<PaymentInfoUiState> = _uiState
    private var attempt = 1

    fun startPaymentInfoRequest() {
        attempt = 1
        _uiState.value = PaymentInfoUiState.Loading(attempt)
    }

    fun onPaymentInfoResult(result: Result<String>) {
        if (result.isSuccess) {
            _uiState.value = PaymentInfoUiState.Success(result.getOrNull() ?: "", attempt)
        } else {
            if (attempt >= 5) {
                _uiState.value = PaymentInfoUiState.Error("All attempts failed", attempt)
                attempt = 0
            } else {
                _uiState.value = PaymentInfoUiState.Loading(attempt)

            }
        }
        attempt++
    }

    fun retry() {
        _uiState.value = PaymentInfoUiState.Loading(attempt)
    }

    fun onServiceDisconnected() {
        _uiState.value = PaymentInfoUiState.Error("Service disconnected", attempt)
        attempt = 0
    }
}

To test the application, you start the application on the SmartPOS device and observe the behavior when requesting payment information.

• You can also reboot the terminal to see if the application starts automatically and requests the payment information.
• To simulate failures, you can stop the payment solution process to see how the retry mechanism works.

Loading State

Error State

Success State
