WPI V1.0 Codelab

The Worldline Payment Interface (WPI) is an Android intent-based interface that enables easy and fast integration with payment apps. It is designed to allow additional business applications to execute payments on any Worldline offered SmartPOS device. A SmartPOS device is a payment device that runs Android And also smartphones using Tap On Mobile..

All Worldline Payment Solutions support WPI, which means that business applications that use this interface can run everywhere without any change of code. This makes it easy for developers to build payment apps that are compatible with a wide range of payment devices and payment protocols.

The WPI interface is built on top of the Android Intent mechanism, which allows different parts of an app to communicate with each other in a structured way. By using intents to trigger payment-related actions, the WPI interface simplifies the payment integration process and makes it easier for developers to build business applications on top of Payment Solutions.

What You'll Learn

Send a request using the WPI V1.0 interface
Handle the response
Create a simple business app that launches payment.4

Get the code

Click the following link to download all the code for this codelab:

Download Zip

Check out the sample app

For this codelab we will use Android studio Giraffe, SDK 33 and Gradle 7.5

The code you just downloaded contains code for all codelabs available. To complete this codelab, open the samplecode project inside Android Studio.

The codelabs repo contains starter code for all codelabs in the pathway. For this codelab, use the wpiCodelab project.

wpiCodelab — Project that contains the start and finished code for this codelab.

The project is built with two app folders:

start – the starter code for this project; you will make changes to this to complete the codelab.
finished_code – contains the solution to this codelab.

We recommend that you start with the code in the start folder and follow the codelab step-by-step at your own pace.

During the codelab, you'll be presented with snippets of code that you'll need to add to the project. In some places, you'll also need to remove code that is explicitly mentioned in comments on the code snippets.

Getting familiar with the code and running the sample app

Take a moment to explore the project structure and run the app.

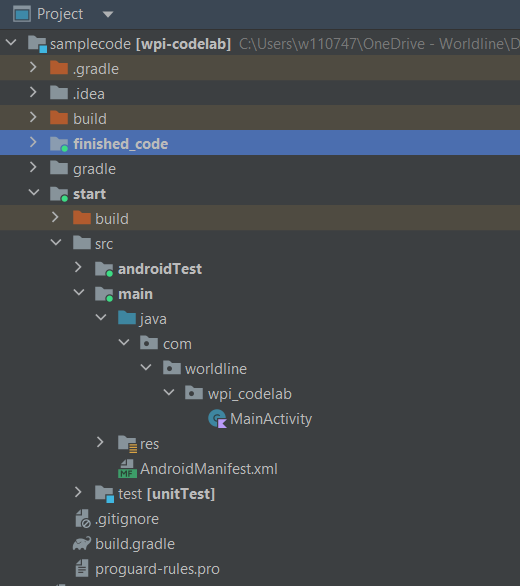

Project structure

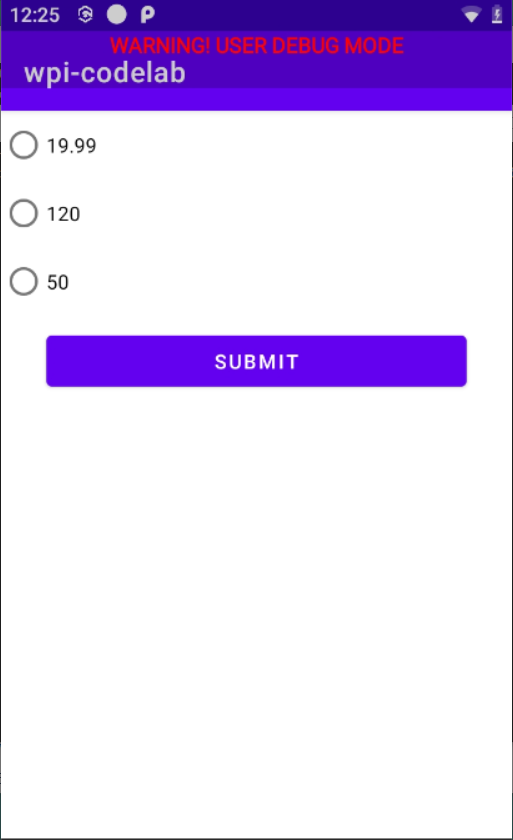

When you run the app from the ‘start' folder , you'll see that this is a very simple application with only a text field to enter an amount and a button to proceed to the payment.

Project structure

For this codelab we will see how to implement a payment but the WPI provides a set of intents that developers can use to build apps that work with the interface. The following table lists each intent, along with its purpose:

Type	Intent	Purpose
Financial	com.worldline.payment.action.PROCESS_TRANSACTION	Process a financial transaction
Management	com.worldline.payment.action.PROCESS_MANAGEMENT	Trigger payment solution managed actions

Extras

An extra in Android intents is a way to pass additional data or parameters to another component in order to provide more context or information for the requested action. In WPI we have extras for request and response. The request extras needs to be provided by the Business Application that is using the interface and the response extra is provided by the Payment Solution.

Request:

Extra	Description	Type	Condition
WPI_SERVICE_TYPE	Specify the subtype of action to be executed	String	Mandatory
WPI_REQUEST	The request contains JSON structured data mandatory for given service type, in some specific cases this field is not given or empty	String	Mandatory for Financial, Optional for Management
WPI_VERSION	Used WPI version	float	Mandatory

Response:

Extra	Description	Type	Purpose
WPI_RESPONSE	The response contains JSON structured data processed for the requested service type	String	Mandatory

Financial

Service type	Purpose
WPI_SVC_PAYMENT	Used to perform a simple sale transaction also known as purchase
WPI_SVC_CANCEL_PAYMENT	Used to reverse a previous transaction
WPI_SVC_REFUND	Used to refund a previous transaction
WPI_SVC_PRE_AUTHORIZATION	Used to perform a reservation
WPI_SVC_CANCEL_PRE_AUTHORIZATION	Used to cancel a previous reservation
WPI_SVC_UPDATE_PRE_AUTHORIZATION	Used to increment a previous reservation
WPI_SVC_CANCEL_UPDATE_PRE_AUTHORIZATION	Used to cancel the previous incrementation of a reservation
WPI_SVC_PAYMENT_COMPLETION	Used to purchase a reservation / incremented reservation
WPI_SVC_CANCEL_PAYMENT_COMPLETION	Used to cancel the purchased reservation
WPI_SVC_DEFERRED_PAYMENT_AUTHORIZATION	Used to execute a deferred payment authorization (energy solution use-case)
WPI_SVC_DEFERRED_PAYMENT_COMPLETION	Used to execute a deferred payment completion of a previous authorization(energy solution use-case)
WPI_SVC_PAYMENT_WITH_PRODUCT_DELIVERY	Used to execute a transaction with product delivery (vending use-case)
WPI_SVC_PRODUCT_DELIVERY	Used to inform the payment solution that the product was delivered (vending use-case)
WPI_SVC_PAYMENT_INSTRUMENT_RECOGNITION	Used to do a payment card of non payment card recognition request without performing a real transaction (token)

Management

Service type	Purpose
WPI_SVC_PAYMENT_MENU	Used to open the payment solution menu
WPI_SVC_DAY_END	Used to upload the transactions (online and offline) to perform the final settlement.
WPI_SVC_PAYMENT_PARAMETERIZATION	Used to fetch the latest payment solution configuration from the payment solution related configuration system.
WPI_SVC_ACQUIRER_PARAMETERIZATION	Used to fetch the latest acquirer parameters from the acquirer
WPI_SVC_REPEAT_RECEIPT	Used to repeat the receipt printing
WPI_SVC_ABORT	Used to abort an ongoing transaction
WPI_SVC_LAST_TRANSACTION	Used to return the last transaction result
WPI_SVC_PAYMENT_INFORMATION	Used to retrieve the payment solution information especially which service types are supported.

Data Dictionary

Request Data:

Field Name	Description	Type
currency	Currency of the amount. Alpha code value defined in ISO 4217 (e.g. EUR)	String
requestedAmount	Total payment amount as minor unit. The fractional digits are evaluated based in the currency. For example, 11.91€ must be sent as 1191 and the currency as EUR	Integer
cashbackAmount
paymentSolutionReference	A previous transaction reference used for subsequent transactions like a Reversal. This value is defined by the payment application and contains all necessary data to perform subsequent transactions. This value can differ based on the payment application and can only be used on the same device.	String
reference	Reference to be send to the payment solution for reconciliation	String
productRecords	Product catalogue for energy solution based use-cases. This records needs the format that the issuer can understand. Most often used for petrol use-cases.	Array
receiptFormat	To override the default receipt format	Array
recognitionTimeout	Defines the timeout before an error will be returned in milliseconds	Integer
recognitionOptions	Card recognition options	Array

Response Data:

Field Name	Description	Type
result	Result of the transaction (success or failure)	String
errorCondition	Specific error reason (see table below)	String
actionCode	Specific action to be performed by the business application	String
remark	Terminal / transaction specific message for detailed error descriptions. Text provided by payment app in English	String
timestamp	Date and time of the transaction, indicated by the acquirer. Format according to ISO 8601(extended format) => yyyy-mm-hhThh:mm:ss±hh:mm	String
currency	Currency code of the transaction. Alpha code value defined in ISO 4217 e.g. EUR	String
authorizedAmount	Amount of the transaction. The fraction is taken from the currency code. Example: Currency = EUR requestedAmount = 3190 => 31,90 €	Integer
brandName	Brand name of used payment card, like MasterCard, VISA, AMEX and so on.	String
customerLanguage	Language used on all screens towards the cardholder and when formatting the receipt. Language code will be returned for english > en Format according to ISO 630-1 (alpha-2 code)	String
applicationIdentifier	Payment card application identifier dependent on the used card e.g. for MasterCard A00000041010	String
applicationLabel	Payment card application label, depending on the used card e.g. MasterCard DEBIT	String
formattedReceipt	Merchant and cardholder receipt are contained in this field. Both receipts are available as text preformatted. Check the subsequent chapter below for an example. The receipt wide is defined by the payment application (often 32 characters) and depends on the printer capabilities or configuration. The receipt language is the same as it is for the payment app.	Object
paymentSolutionReference	Transaction specific and unique identification. This value is defined by the payment application and contains all necessary data to perform subsequent transactions. This value can differ based on the payment application and can only be used on the same device.	String
dccUsed	Whether DCC was used or not for the transaction. This field is present as soon as DCC is activated for this payment solution.	Boolean
tipAmount	The tip amount that was entered by the cardholder during the transaction with the payment solution. This field is present as soon as TIP is activated for this payment solution.	Integer
reference	Reference to be send to the payment app for reconciliation. The reference will be the same value as in the response.	String
softwareVersion	Payment Solution software version	String
terminalIdentifier	The terminal identifier configured for the payment solution	String
supportedLanguages	List of language that are supported Format according to ISO 630-1 (alpha-2 code)	String
cardholderDefaultLanguage	The configured cardholder default language Format according to ISO 630-1 (alpha-2 code)	String
merchantLanguage	The configured merchant default language Format according to ISO 630-1 (alpha-2 code)	String
countryCode	The country code of the terminal ISO 3166-1 (alpha-2 code)	String
defaultCurrency	The default currency that is configured for the payment solution. Alpha code value defined in ISO 4217 e.g. EUR	String
supportedCurrency	All currencies that are supported by the payment solution. Alpha code value defined in ISO 4217 e.g. EUR	String
shopInfo	The shop information of the terminal. Usually these are the first three lines of each receipt. Shop Name Street + No Location The information are provided as array. First item shop name, second one address and third one location.	Array
acquirerProtocol	The used acquirer protocol by the payment solution, usually this is the official acronym like CTAP.	String
supportedTicketFormats	The supported ticket formats by the payment solution	String
paymentInformation	Detailed payment solution information per brand & acquirer	Array
paymentSolutionSupportedServiceTypes	Payment Solution supported service types. This includes all service types of WPI.	Array
entryMode	The technology that was used to read the card	String
isoTrack1	ISO track 1 data	String
isoTrack2	ISO track 2 data (due to PCI regulatory payment card PAN data are always masked)	String
isoTrack3	ISO track 3 data	String
token	The token of the card PAN / UID (in case of NFC non payment related card) that was read. The token should be an unique value, generated by the payment solution and can be reproduced on the same device. This token is used to identify the customer.	String
pan	PAN of the card (due to PCI regulatory payment card PAN data are always masked)	String
mediaType	Media type of NFC non payment card. e.g. MIFARE Ultralight	String
mediaUniqueIdentifier	UID of NFC based non payment card	String
waitForNextAction	Whether the payment solution keeps the card in read mode for a subsequent transaction or not	Boolean
nextActionWaitTime	The time how long the card is kept in read mode, in milliseconds	Integer

Creation of the request

Create a new data class SaleTransactionRequest in the package com.worldline.wpi_codelab.model.request. This class takes 2 parameters: the currency and the amount.

@Serializable
public data class SaleTransactionRequest(
    val currency: String,
    val requestedAmount: Long,
)

To use the Serialization you need to add the following code in your gradle.app:

plugins {
    id 'kotlinx-serialization'
}

dependencies {
    implementation 'org.jetbrains.kotlinx:kotlinx-serialization-json:1.5.0'
}

To finish sync your project with Gradle files.

Creation of the response

Create a second data class SaleTransactionResponse in the package com.worldline.wpi_codelab.model.response. This class takes 3 parameters: the result the currency and the amount.

@Serializable
public data class SaleTransactionResponse(
    val result: String?,
    val authorizedAmount: Long? = null,
    val currency: String? = null,
)

We can now create the SaleActivity in the package com.worldline.wpi_codelab, this activity will execute the transaction and handle the response. To do so we will use a registerForActivityResult.

To have more information about how to get a result from an activity you can click here.

executeSaleTransaction

The SaleActivity first method will be executeSaleTransaction and it will execute the registerForActivityResult:

private fun executeSaleTransaction(amount: Long) {
    val saleTransaction = SaleTransactionRequest("eur", amount)
    val saleTransactionJson: String = Json.encodeToString(saleTransaction)

    val intent = Intent("com.worldline.payment.action.PROCESS_TRANSACTION")
    // These extras are mandatory whether the intent comes from the payment
    // application or a 3rd party application.
    intent.putExtra("WPI_SERVICE_TYPE", "WPI_SVC_PAYMENT")
    intent.putExtra("WPI_REQUEST", saleTransactionJson)
    intent.putExtra("WPI_VERSION", 1)

    launcher.launch(intent)
}

handleTransactionResponse

The SaleActivity second method will be handleTransactionResponse:

//allows ignoring fields we don't need in the response
private val json = Json { ignoreUnknownKeys = true }

private fun handleTransactionResponse(intent: Intent) {
    val rawJsonResponse = intent.getStringExtra("WPI_RESPONSE")
    if (rawJsonResponse != null) {
        Log.d("Transaction response", rawJsonResponse)
        val transactionResponse = json.decodeFromString<SaleTransactionResponse>(rawJsonResponse)
        val paymentMessage = "${transactionResponse.result}: ${(transactionResponse.authorizedAmount?.toDouble()?.div(100))} ${transactionResponse.currency}"
        Toast.makeText(this, paymentMessage, Toast.LENGTH_SHORT).show()
    }
    // Handle response
}

launcher

To finish this step, just add to your main activity the laucher that will handle the result of the activity when you perform a payment:

private val launcher = registerForActivityResult(
    ActivityResultContracts.StartActivityForResult()
) { result ->
    result.data?.let { handleTransactionResponse(it) }
}

Now that everything is set up, we will make the payment start by pressing the button.

As the amount formating is not the subjectof this codelab, we use a simple solution with radio buttons and pre-defined amount.

To finish on this codelab, just add the executeSaleTransaction function in the button listener:

if(radioOne.isChecked){
    executeSaleTransaction(1999)
}
if(radioTwo.isChecked){
    executeSaleTransaction(12000)
}
if(radioThree.isChecked){
    executeSaleTransaction(5000)
}

Here we check which radio is checked and we lauch executeSaleTransaction with the selected amount.

You can now run the app on a terminal and proceed to your first payment.

Congratulations, you've successfully completed this codelab and learned how to proceed to a payment with the WPI!

You learned about how to create a request, a response, and how to use the Worldline Payment Interface.

What's next? Check out the others possible transactions in the documentation and try to handle them.
